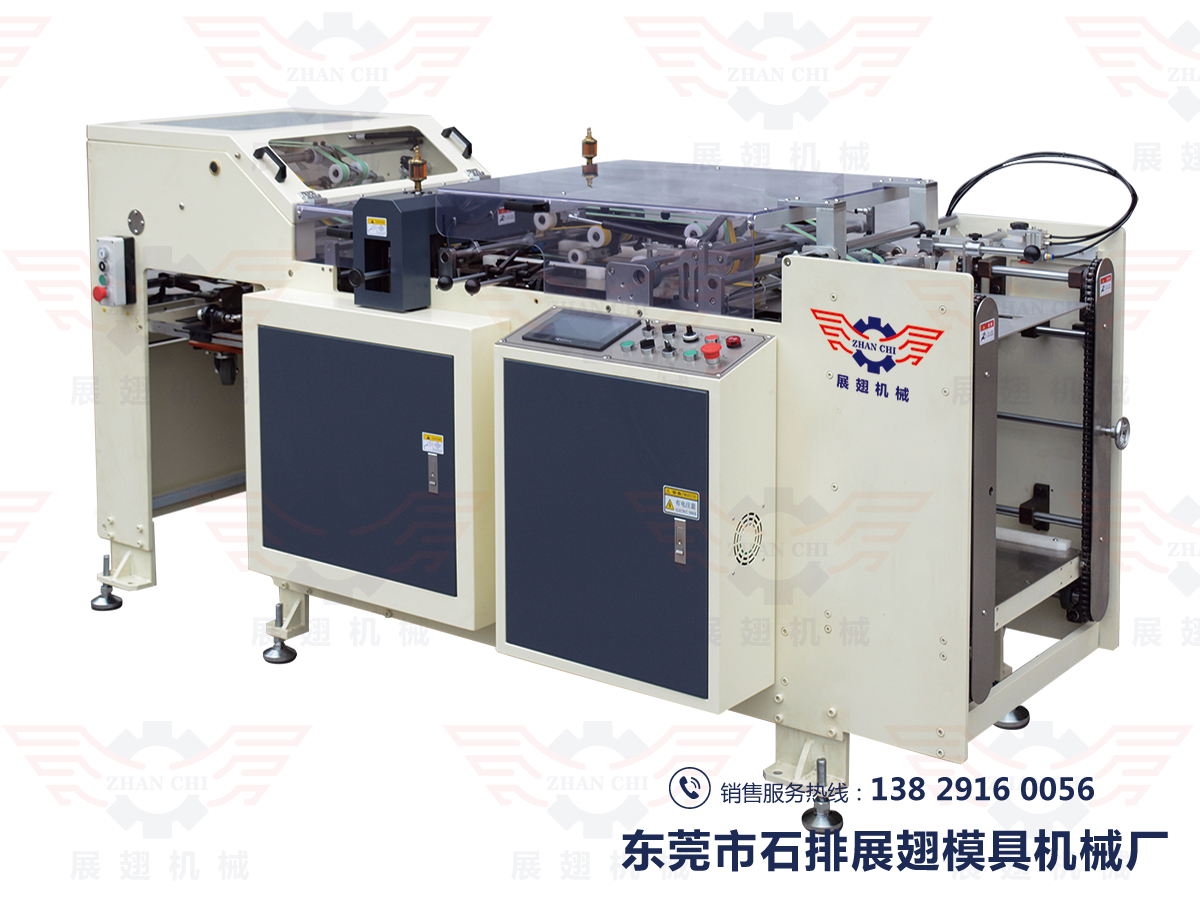

该机是我厂开发生产的新款自动打孔,适合各种不同厚度纸张打孔。进纸部分采用步进机构升降,可方便快捷调节上升进纸速度与厚度设定,结合机械凸轮结构动作匹配,实现联动送纸定位打孔。进纸部分增加机械针式分纸机构,实现厚薄均可进纸,各种机械动作定为准,效率高。模具更换拆装简单快捷。出纸收纸部分分为A,B,C共3款,A型为纸张升降收纸,B型为输送带出纸收纸,C型为单叠收纸方式,三种方式以适应不同生产需要。A型升降收纸需更换升降台小车,B型机可实现不停机连续生产。各种高效率部分均采用进口电器原件零件,保证设备高效长久使用。

This machine is a new type of automatic punching machine developed and manufactured by our factory. It is suitable for punching paper of various thicknesses. Step-by-step mechanism is used in the paper feeding part, which can adjust the speed and thickness of the paper feeding conveniently and quickly. Combining with the action matching of the mechanical cam structure, the paper feeding positioning and punching can be realized. In the paper feeding part, a mechanical needle-type paper splitting mechanism is added to realize that the thickness of the paper can be accessed, and all kinds of mechanical actions are set in order, with high efficiency. Mould replacement and disassembly is simple and fast. The paper-collecting part is divided into three sections: A, B and C. Type A is paper-lifting and paper-collecting, Type B is paper-collecting with conveyor belt, and Type C is single-fold paper-collecting, which can meet different production needs. Type A lifting and paper collecting car needs to be replaced. Type B machine can realize continuous production without stopping the machine. All kinds of high efficiency parts adopt imported electrical parts to ensure the efficient and long-term use of the equipment.


机器尺寸 Machine size2580*1200*1200(mm)B.C型+1200mm
电  源  Power SupplyAC380V
功  率  Power2.2KW
重  量  Net Weight净重1300KG
生产尺寸 DiameterA3,A4,A5,厚度0.5-4mm
生产速度Speed100-130次/分钟

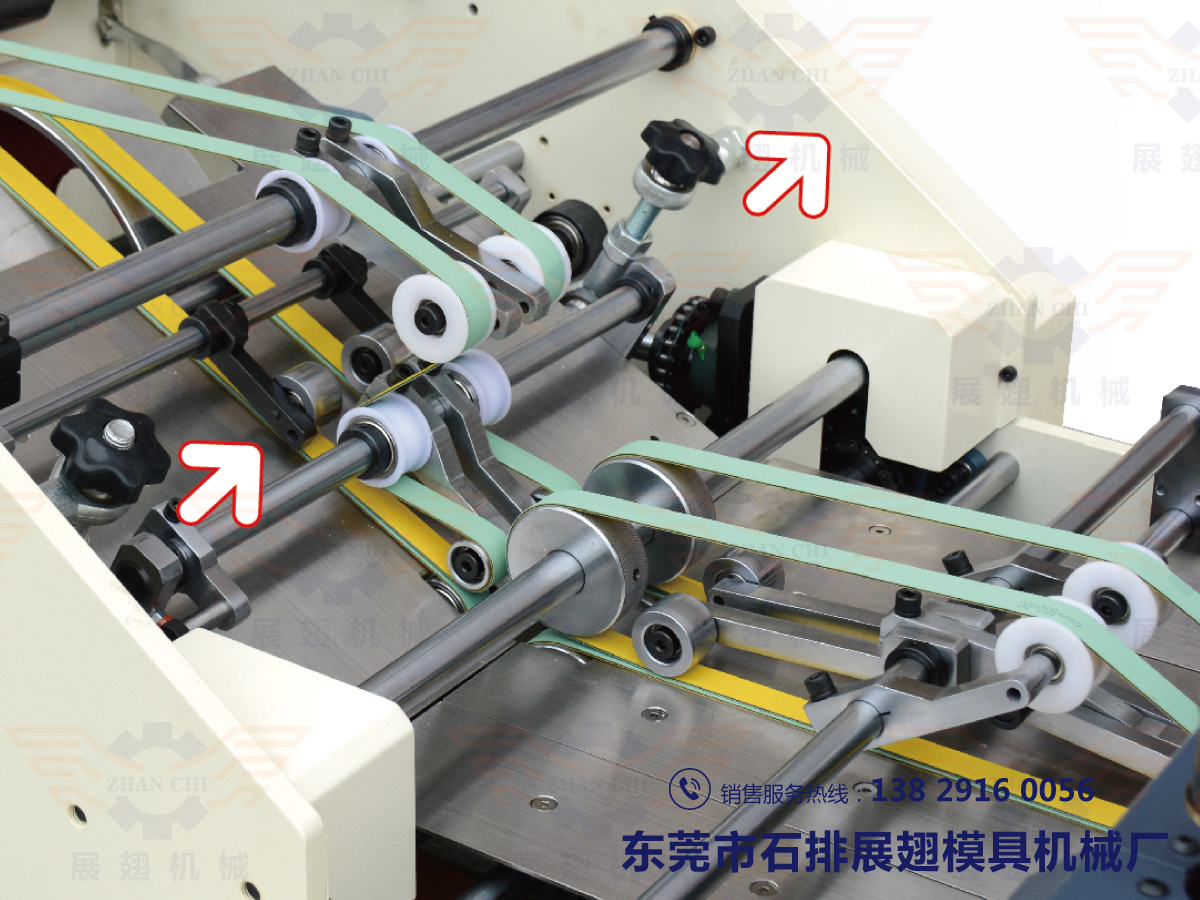

机器重要特点:后部收纸转轮可通过离合器脱离,抬起台面板,可使厚纸板不用倒顺序直接落入收料升降台或者输送线上。

The rear take-up wheel can be removed by the clutch, lifting the table board so that the thick cardboard can fall directly into the pick-up table or the conveying line without having to reverse the sequence.

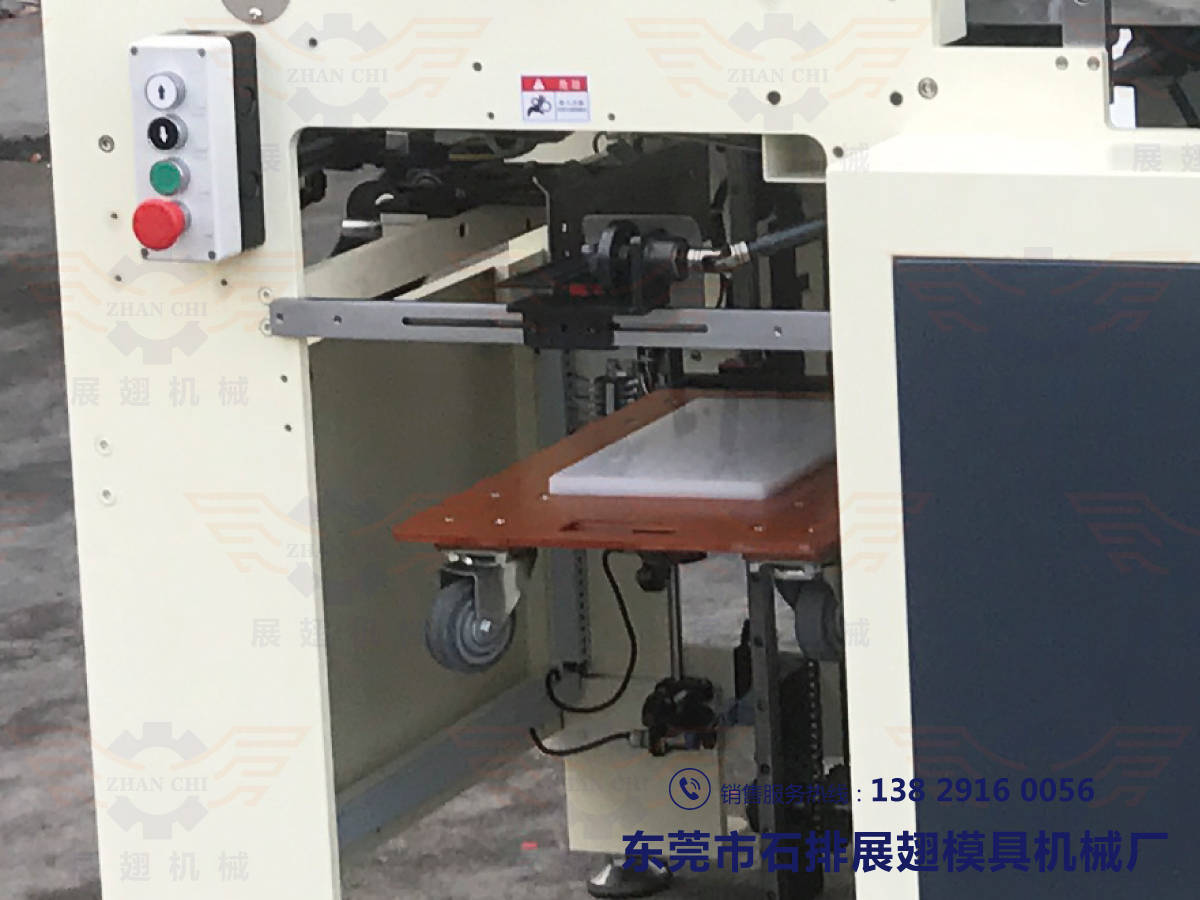

A型特点:纸张升降收纸,行程开关设置自动进纸控制,完成换板后自动续纸冲孔,可实现联动不停机。

Type A features: paper lifting and paper collecting, automatic paper feeding control of travel switch, automatic paper punching after changing board, can realize linkage and non-stop.


机器尺寸 Machine size

2580*1200*1200(mm)

电    源  Power SupplyAC380V
功    率  Power2.2KW
重    量  Net Weight净重1300KG
生产尺寸 DiameterA3,A4,A5,厚度0.5-4mm
生产速度 Production speed
100-130次/分钟

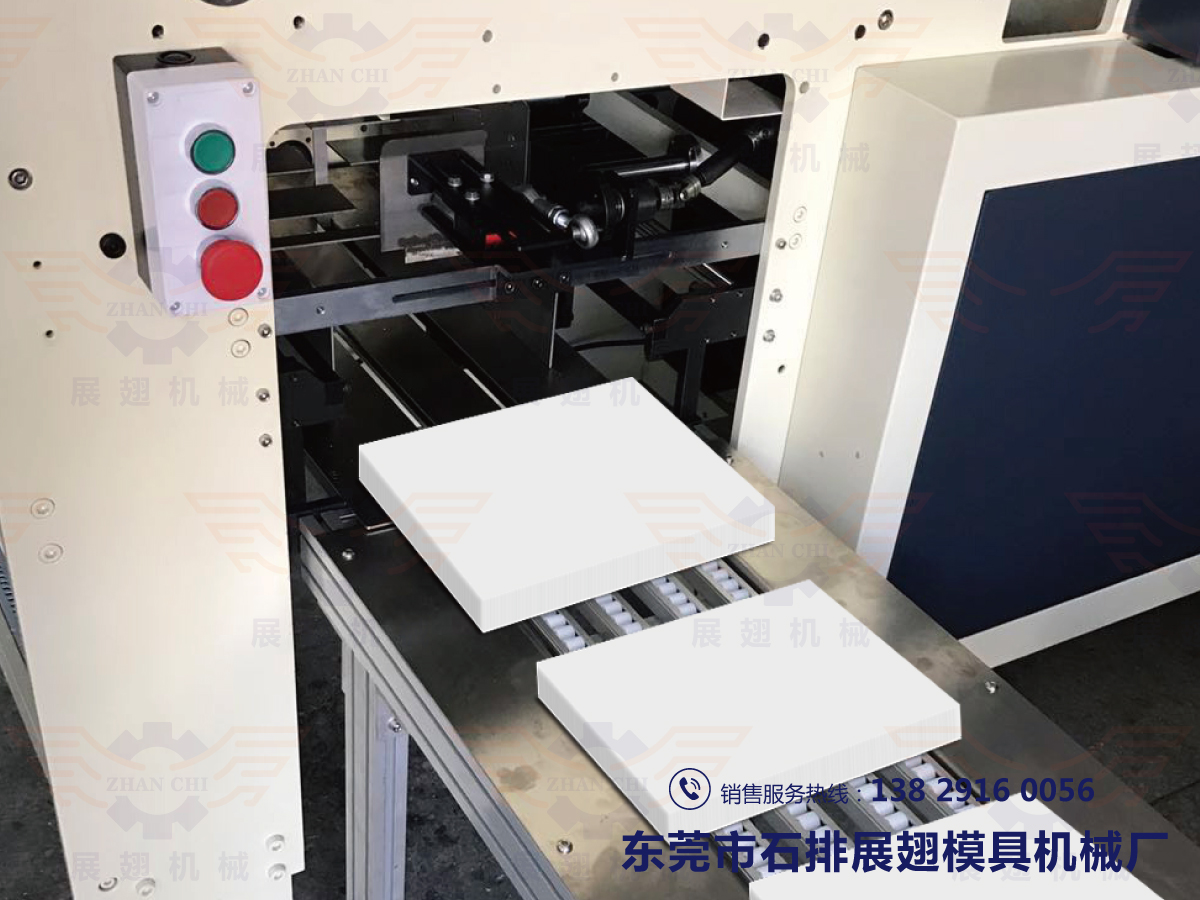

B型特点:纸张皮带式输送台收纸,不停机收纸,可实现与流水线接驳生产。

Type B features: Paper belt conveyor receives paper without stopping the machine. It can be connected with the production line.


机器尺寸 Machine size

2580*1200(+出料台1200)*1200(mm)

电    源  Power SupplyAC380V
功    率  Power2.2KW
重    量  Net Weight净重1300KG
生产尺寸 DiameterA3,A4,A5,厚度0.5-4mm
生产速度 Production speed
100-130次/分钟

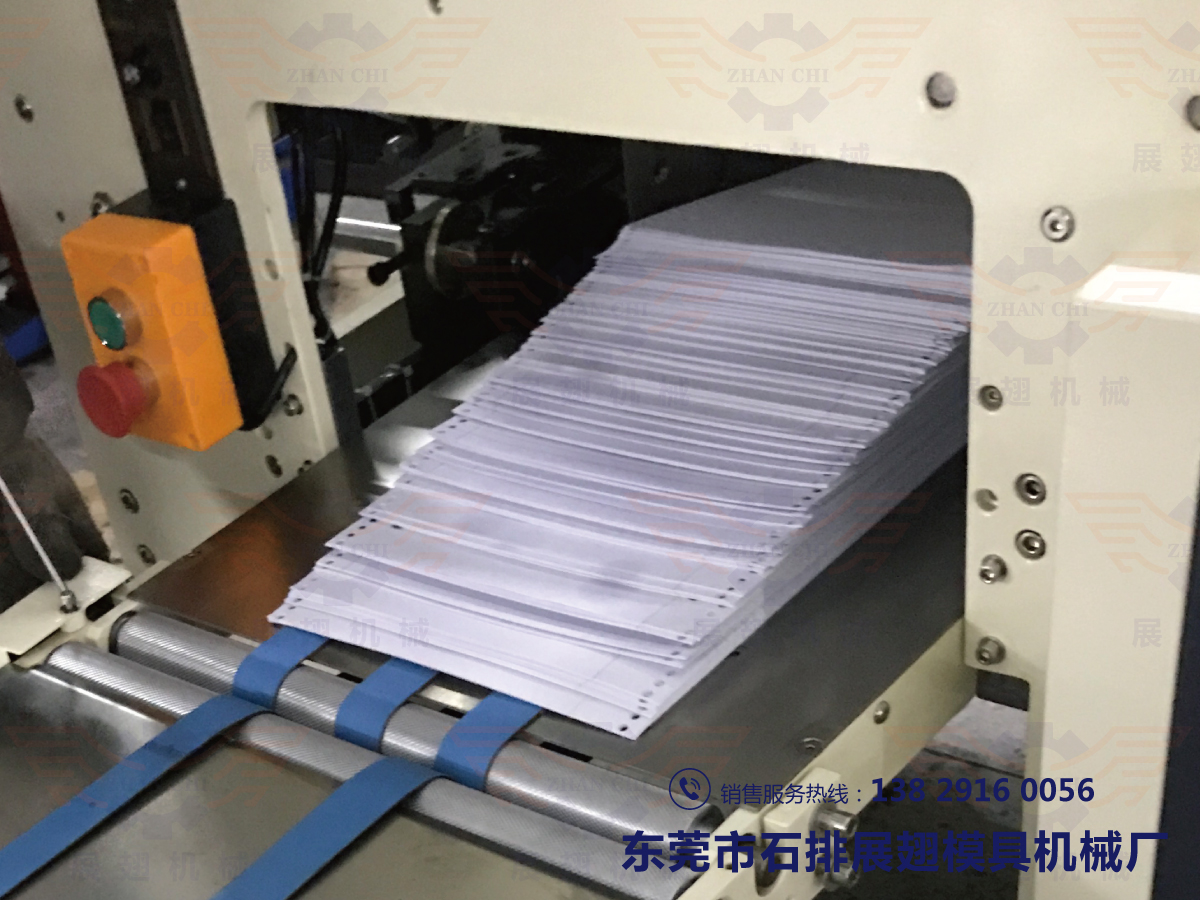

C型特点:纸张整碟收纸,设置堆纸高度与次数,不停机收纸,出纸为50-100MM高度堆叠方式,减少收纸劳动强度

Type C features: paper disc collection, stacking height and times, non-stop paper collection, 50-100MM high stacking mode for paper delivery, reducing the labor intensity of paper collection.


机器尺寸 Machine size

2580*1200(+出料台1200)*1200(mm)

电    源  Power SupplyAC380V
功    率  Power2.2KW
重    量  Net Weight净重1300KG
生产尺寸 DiameterA3,A4,A5,厚度0.5-4mm
生产速度 Production speed
100-130次/分钟
